VILLA E01 — 560 m² — STMK
←Countryside
PRJ/01 — RC MONOLITH, POROTHERM WALLS
STATUS — Completed · 2018—2019

VILLA E01

AREA
560 m²
STOREYS
2
STRUCTURE
RC monolith, Porotherm walls
STATUS
Completed
01 — ABOUT THE OBJECT

Two levels with a projecting cantilevered portal opening towards the water.

A 560 m² house on two levels. Design, construction and general contracting by STMK, 2018—2019. The raft foundation and the 200—350 mm slabs are cast in reinforced concrete, the external walls are Porotherm ceramic block, and the roof is a flat warm deck. A projecting cantilevered portal opens the upper level towards the water. The gallery presents the house architecture and key stages of construction.

02 — ARCHITECTURE

The house by the water

4 FRAMES

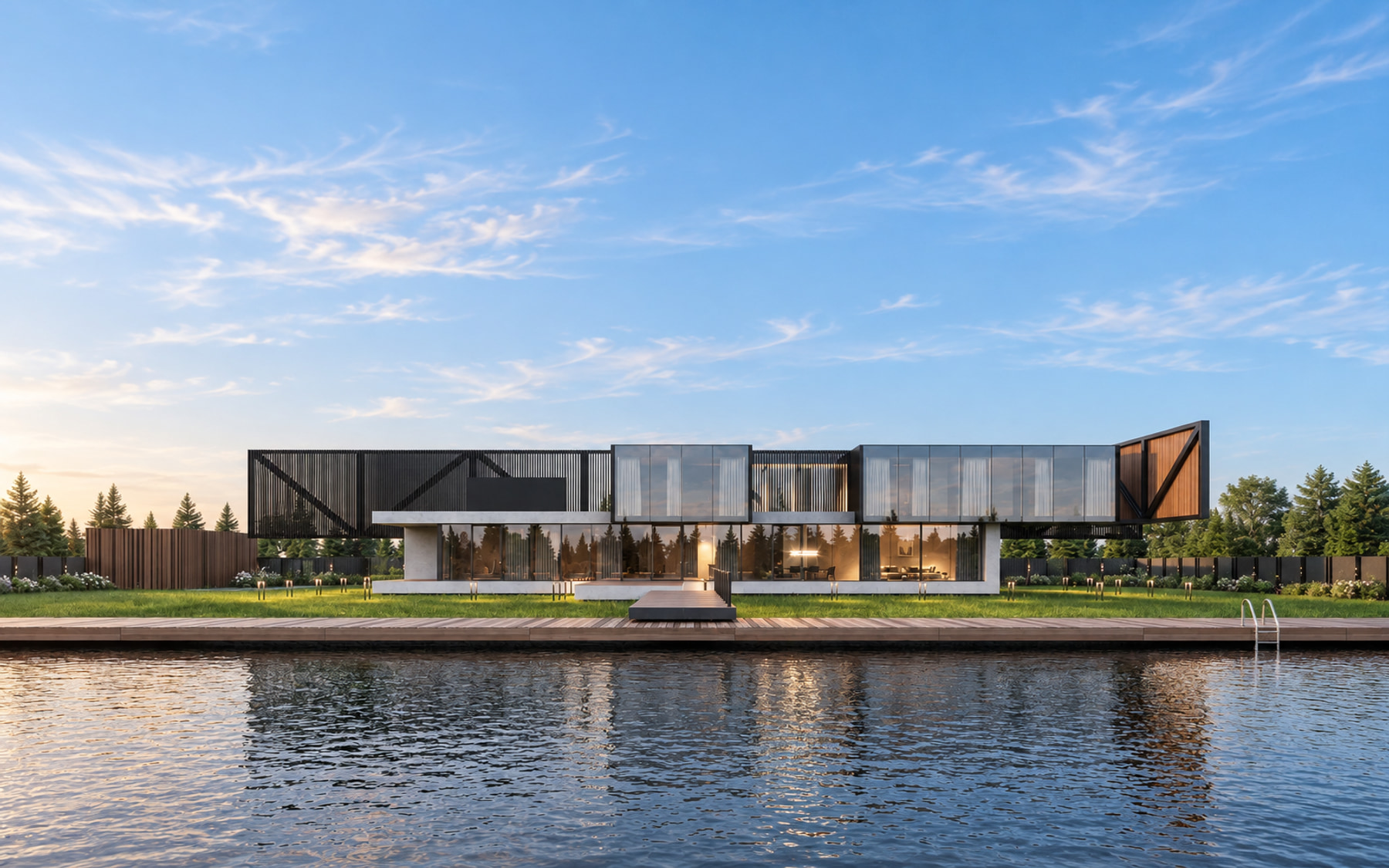

The house from the water
The house from the water

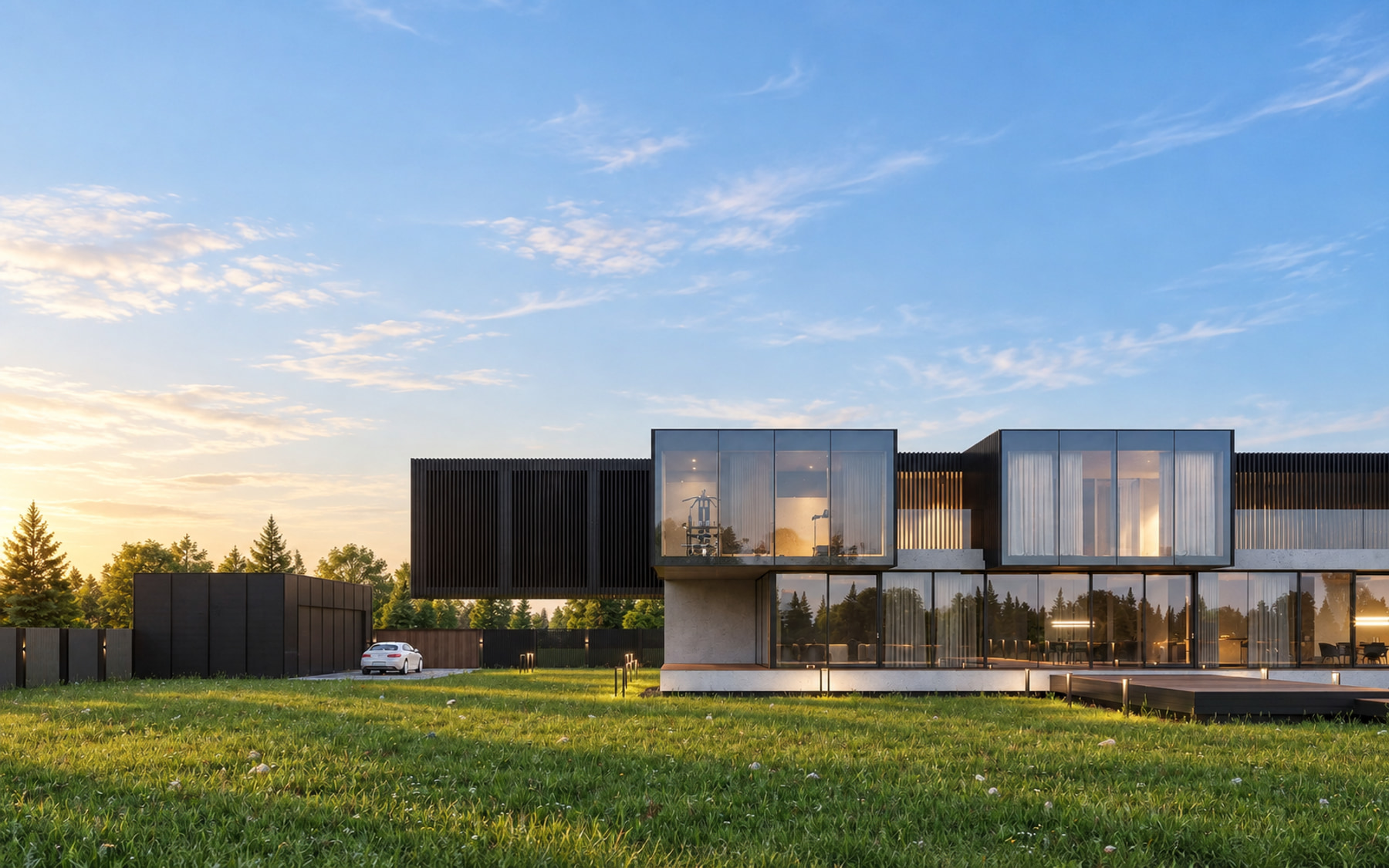

The garden elevation
The garden elevation

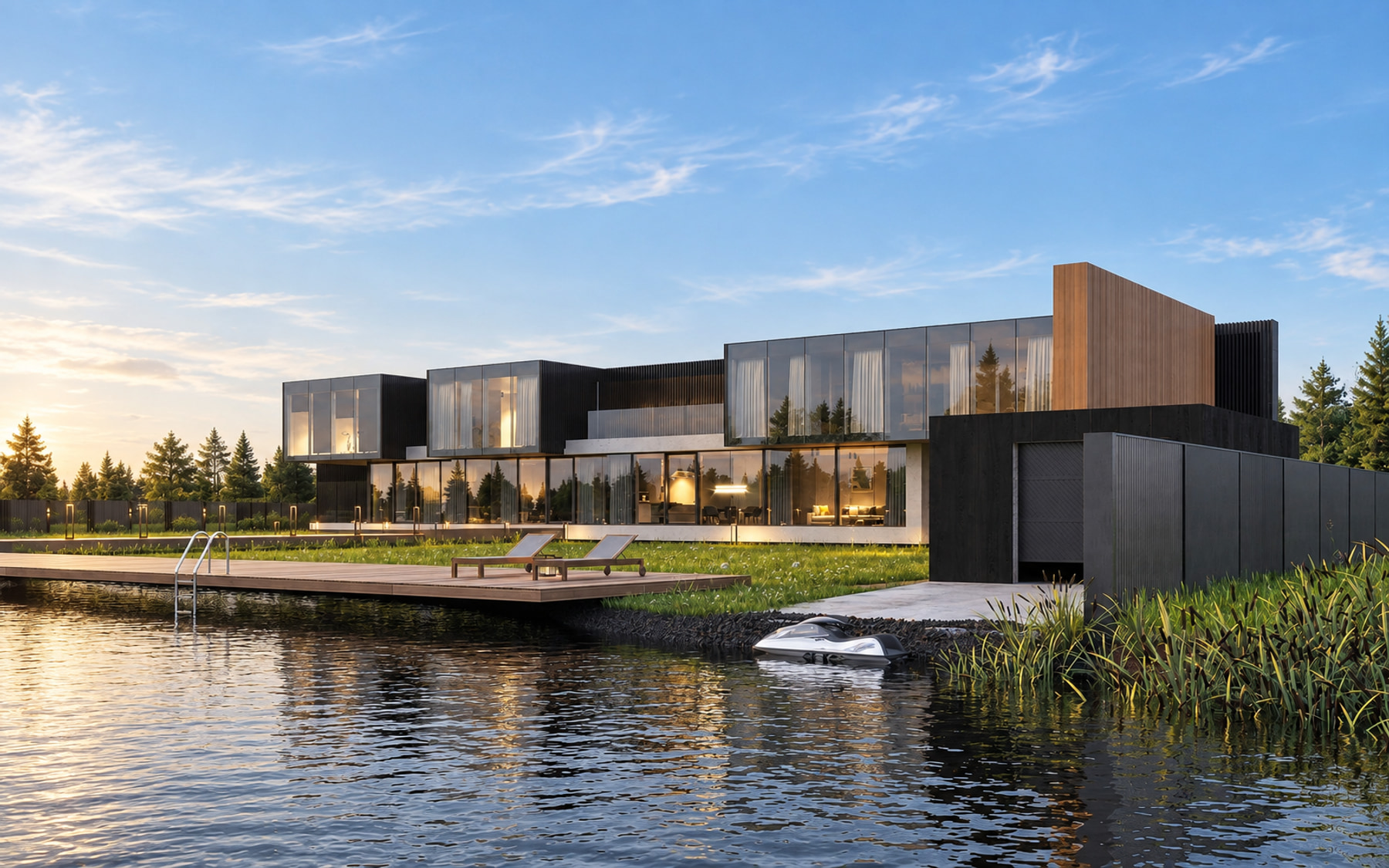

Along the shoreline
Along the shoreline

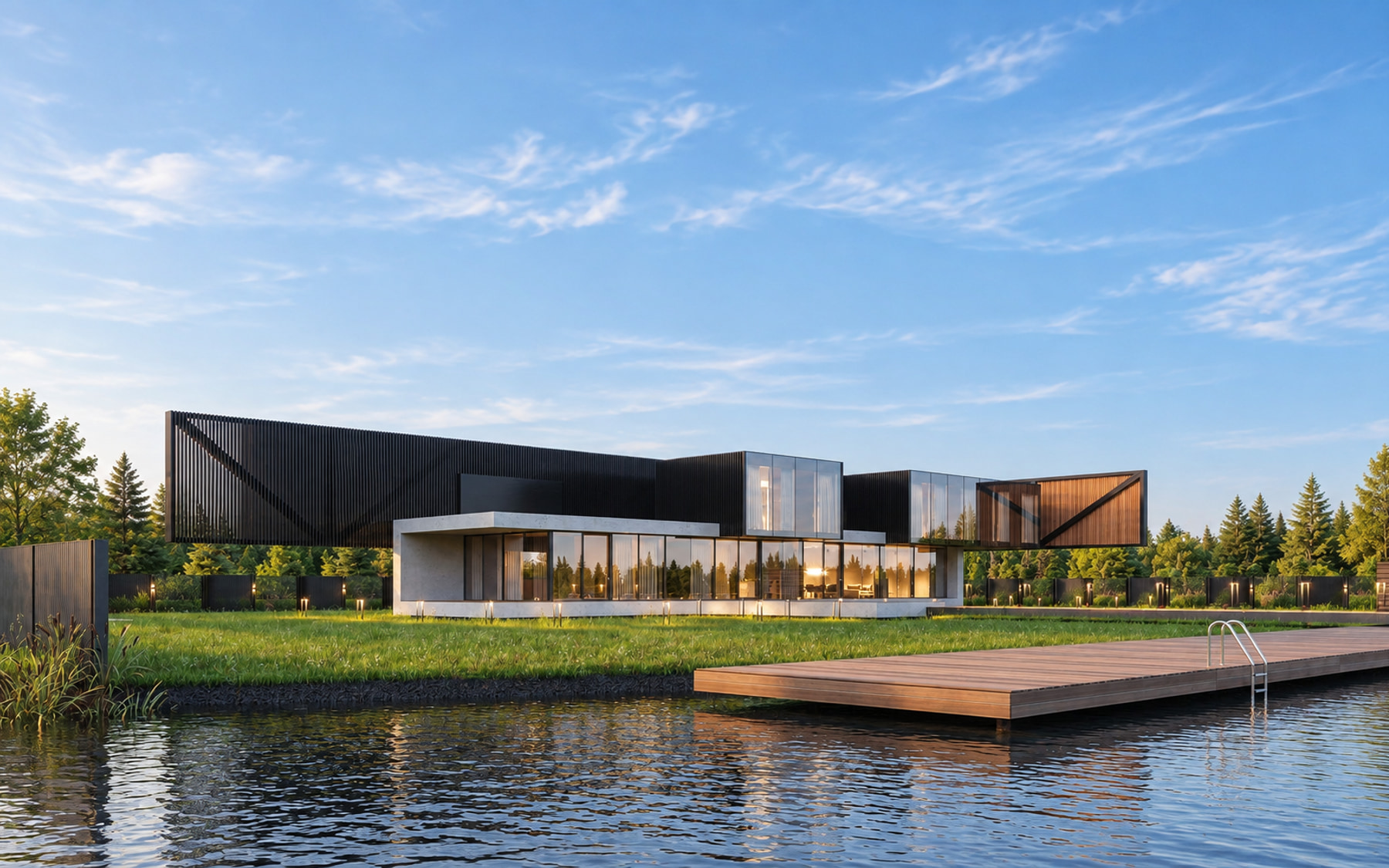

The pier and the lower level
The pier and the lower level
03 — CONSTRUCTION STAGES

How the house was built

5 FRAMES

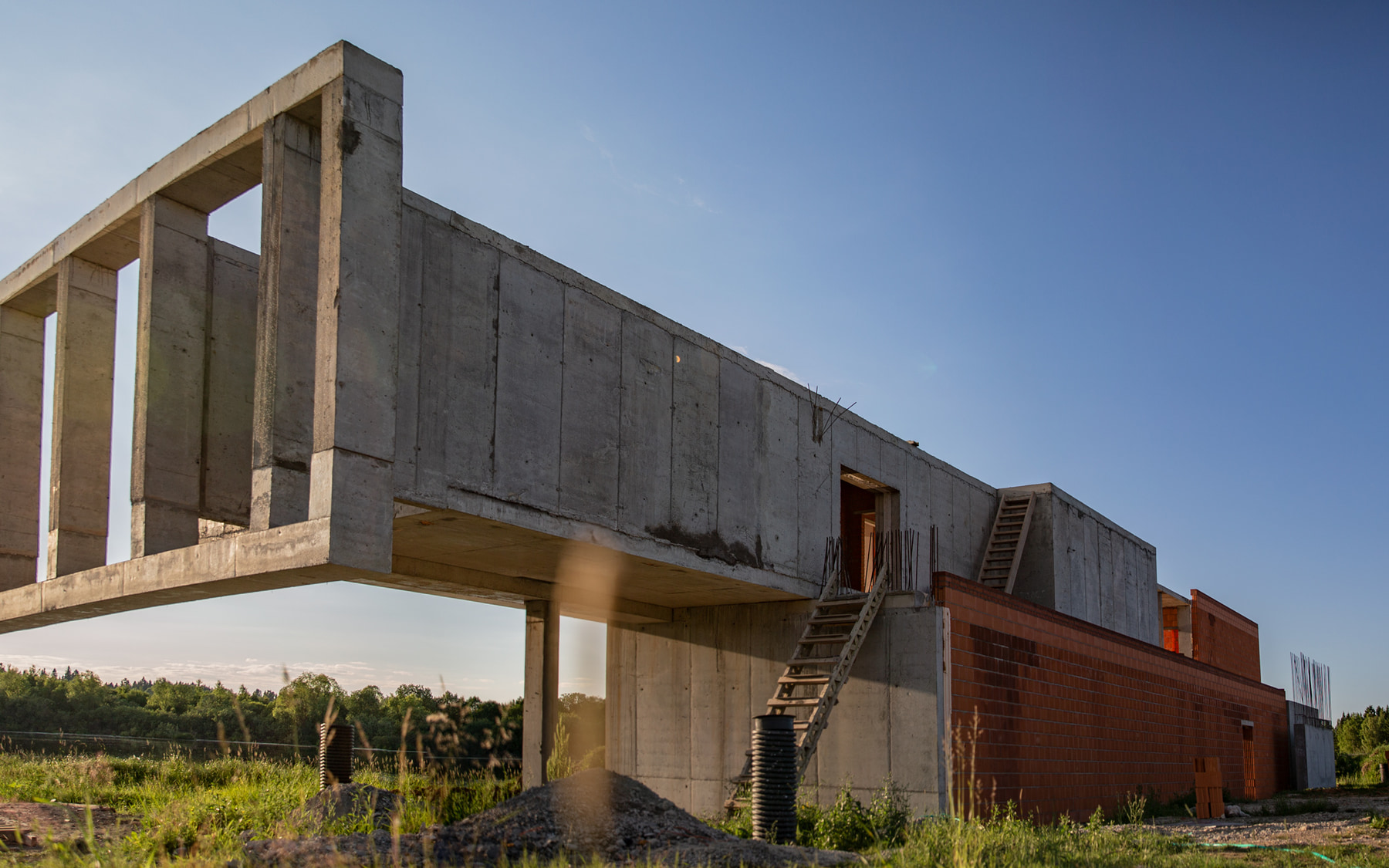

The in-situ concrete portal and cantilever
The in-situ concrete portal and cantilever

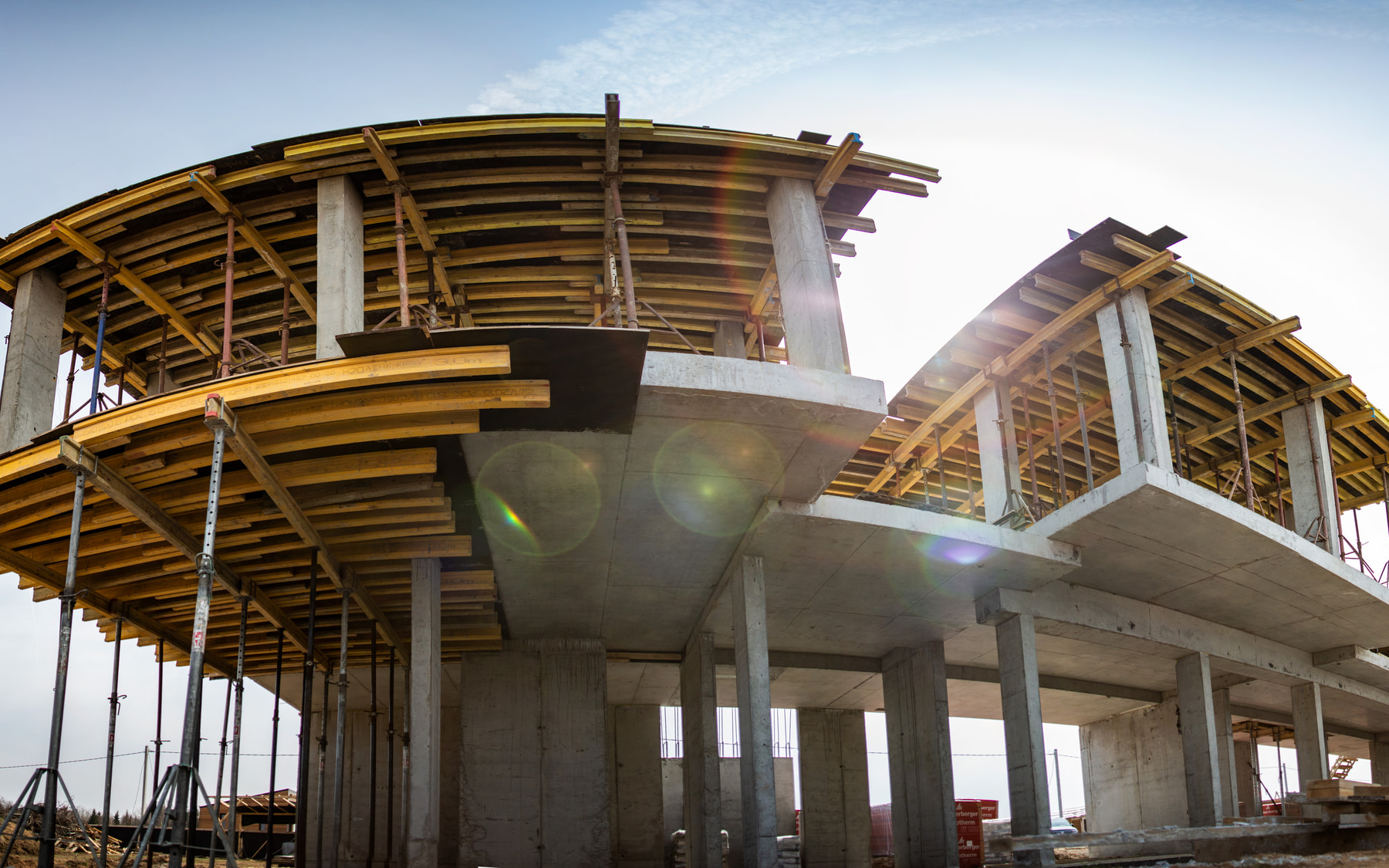

Constructing the in-situ concrete slabs
Constructing the in-situ concrete slabs

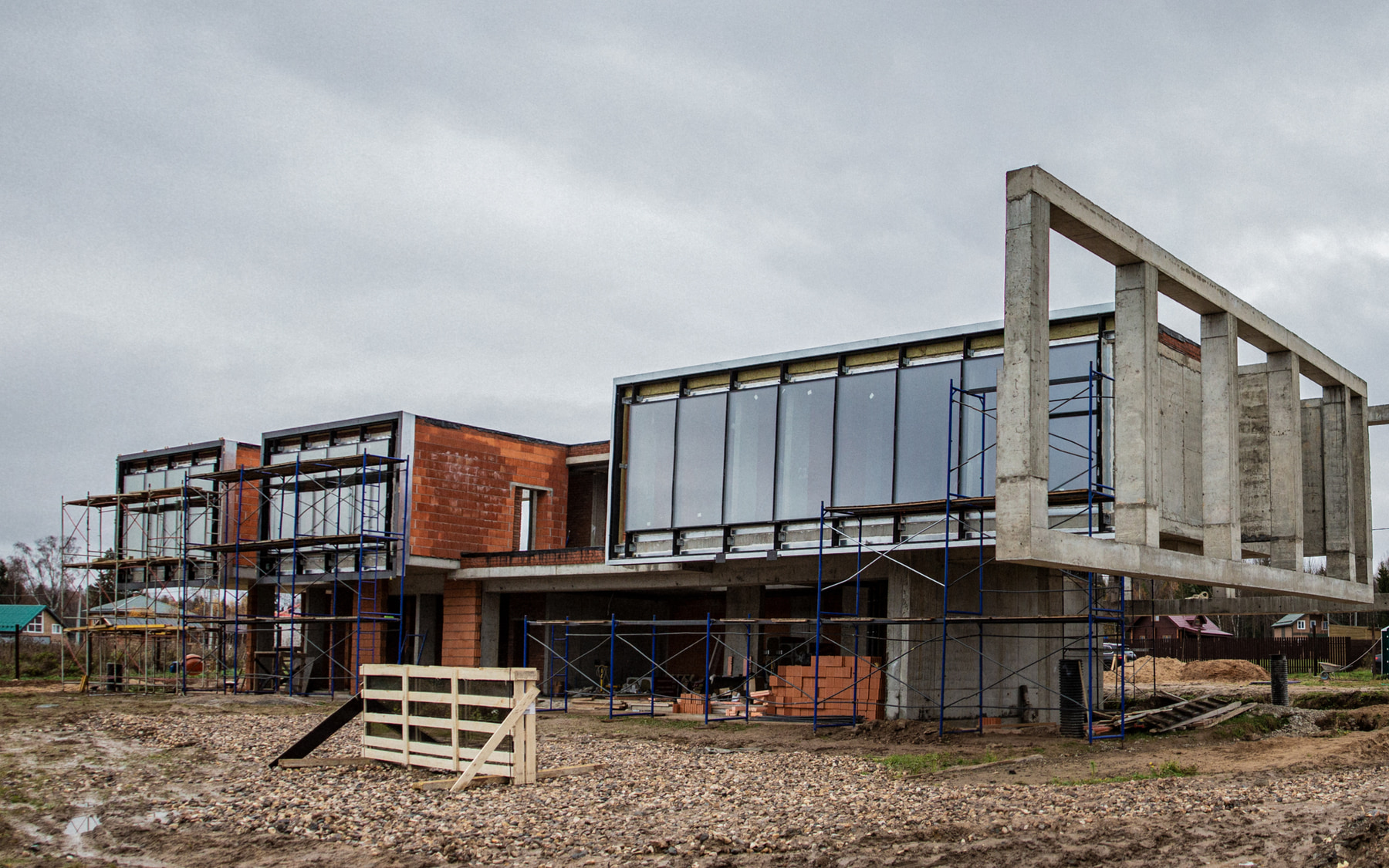

Installing the panoramic glazing
Installing the panoramic glazing

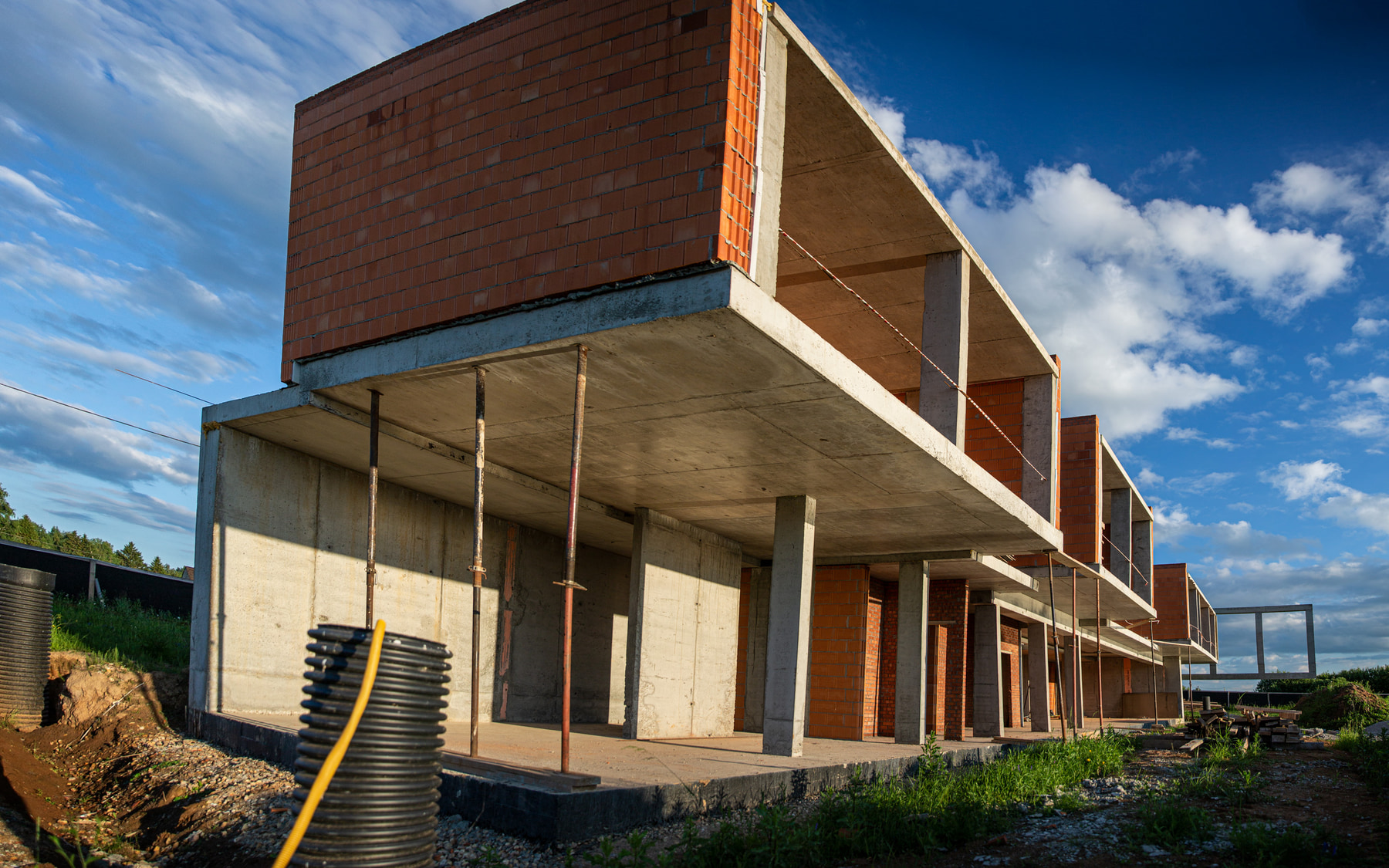

The structural cantilever and Porotherm masonry
The structural cantilever and Porotherm masonry

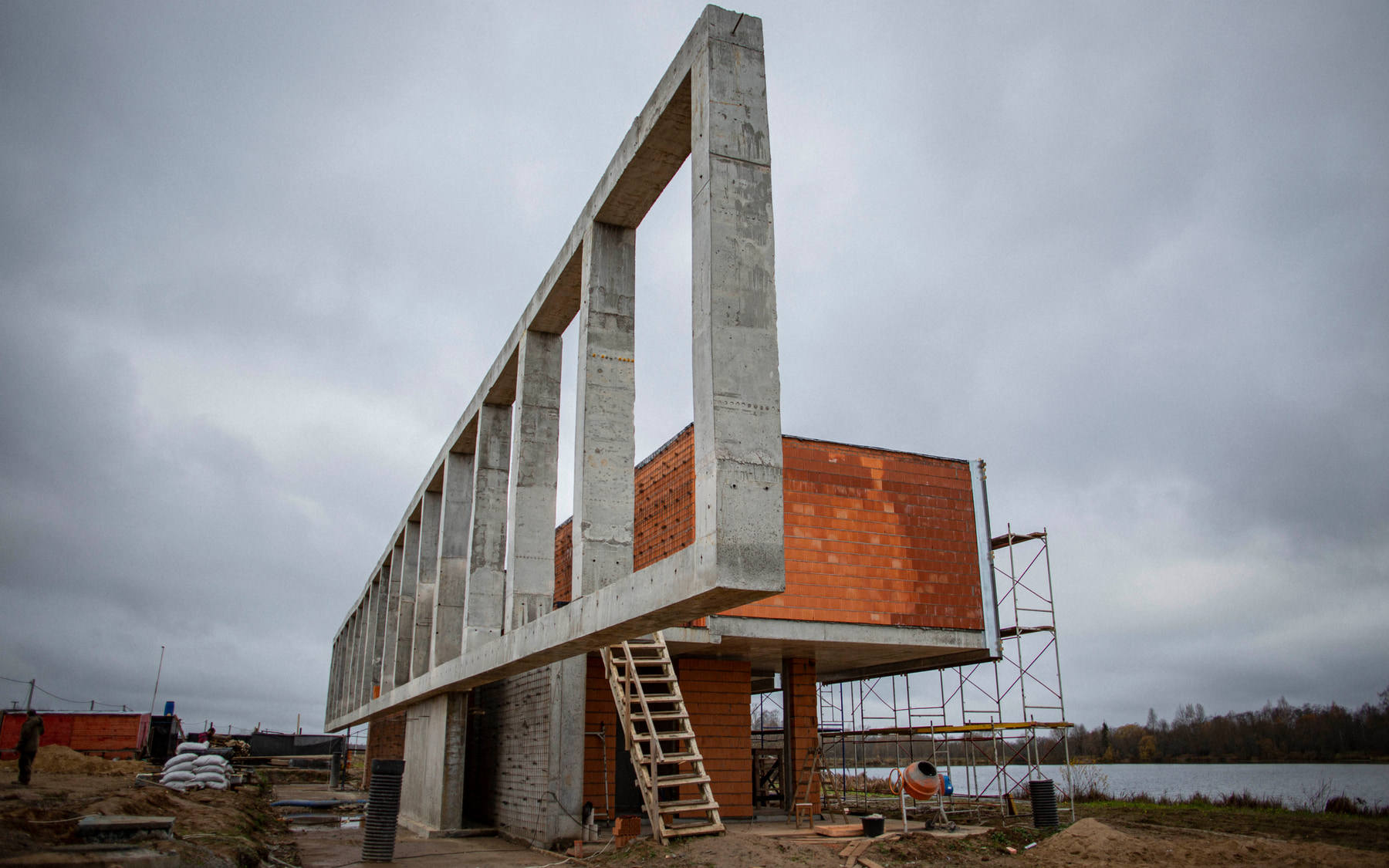

The portal viewed from the water
The portal viewed from the water
04 — DESIGN DOCUMENTATION

Working documentation of the project

Сборка АС · 41

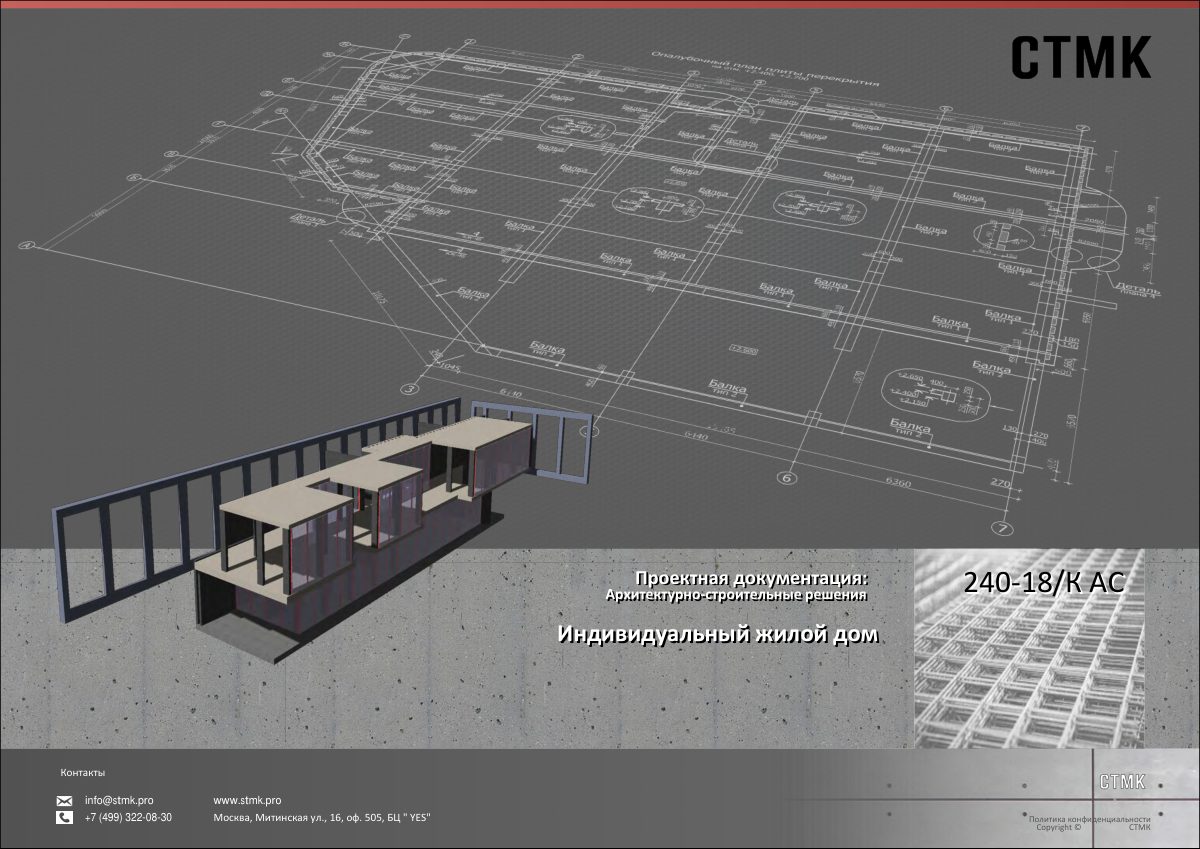

VILLA E01 — sheet 1
← → SHEET 1 / 15 PDF · 41 sheets · 5,3 МБ ↓

Sheets from the working set. Personal data of the design team, the address of the object and the client are not shown.
